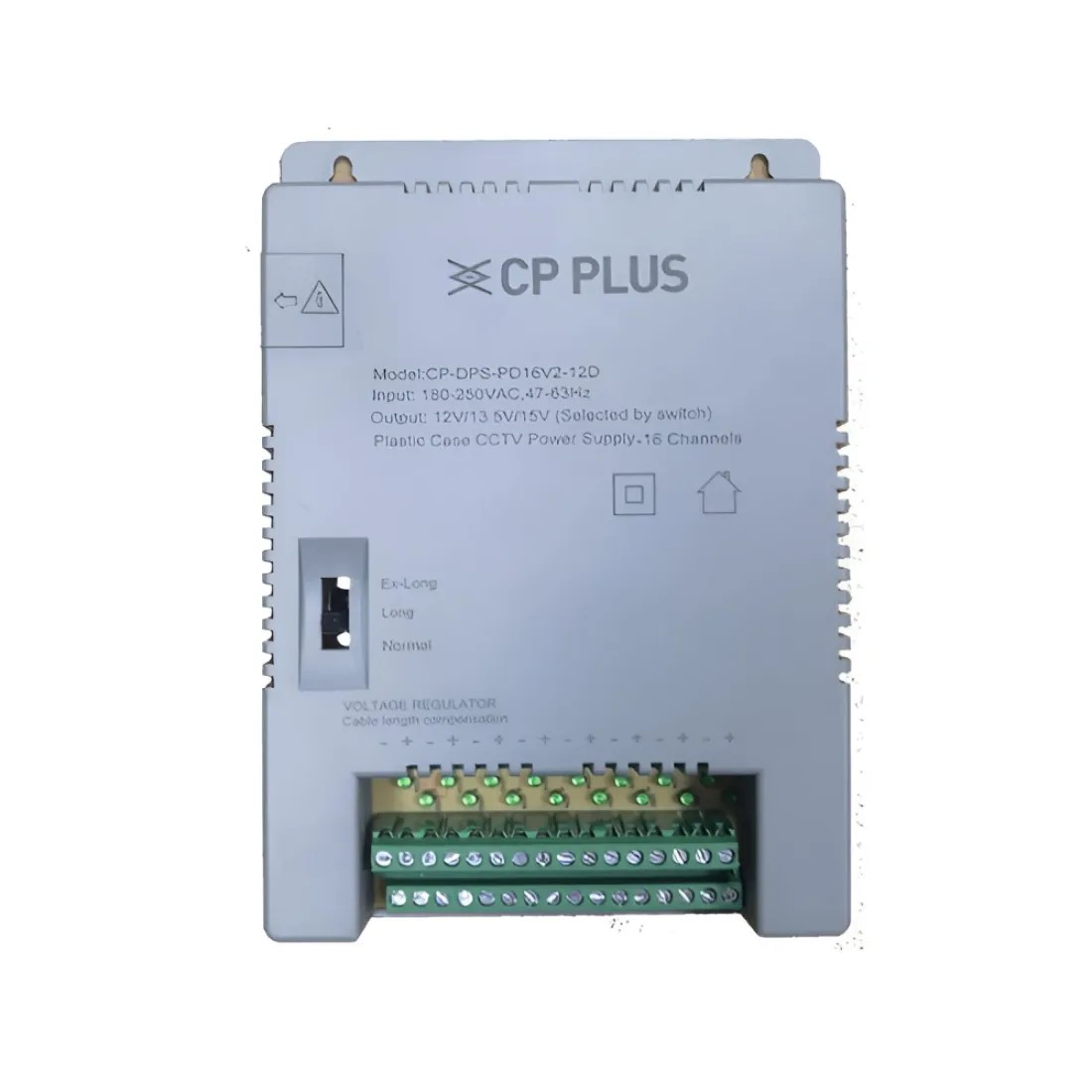

CP-Plus CCTV Power Supply Eco 16ch 12v/20a (PD16V2)

Original price was: ₹2,250.00.Current price is: ₹1,666.00.

Terms & Conditions

For Cash on delivery order, you have to pay 10% advance via payment gateway. (कॅश ऑन डिलीवरी आर्डर के लिए 10% पहले आपको ऑनलाइन भुगतान करना पड़ेगा)
Refund or return only process if product is damaged or wrong product delivered. (रिफंड या रिटर्न उसी शर्त पर होगा जब प्रोडक्ट डैमेज या गलत डिलीवर हुआ हो)
You must take video while unboxing for refund/return validation (रिफंड या रिटर्न अप्लाई करने के लिए आपके पासअनबॉक्सिंग का वीडियो होना चाहिए)

Categories: Accessories, Power Supply

Specification	Details
Input Voltage	180~264V AC
Output Voltage	12V DC
Current Range	0~8A
Rated Power	96W
Ripple & Noise (max.)	120mVp-p
Voltage Adj. Range	11.4~12.6V
Line Regulation	±1.0%
Voltage Tolerance	n/a
Setup Rise Time	2500ms, 15ms at full load
Hold Up Time (Typ.)	35ms at full load
Load Regulation	5.0%
Temperature Coefficient	0.03%/°C (0~50°C)
Frequency Range	47~63Hz
Efficiency (Typ.)	86%
AC Current (Typ.)	2A/220VAC
Inrush Current (Typ.)	Cold Start: 50A/220V AC
Leakage Current	<2mA / 240VAC
Over Load	110~200% rated output power, Protection type: Shut down O/P, recovers automatically
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500V DC / 25°C / 70% RH
Working Humidity	20 ~ 90% RH Non-condensing
Vibration	10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z
Dimension	186(L) x 130.5(W) x 39mm(H)
Store Temperature	-20 ~ +85°C
Working Temperature	-20 ~ +45°C
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
