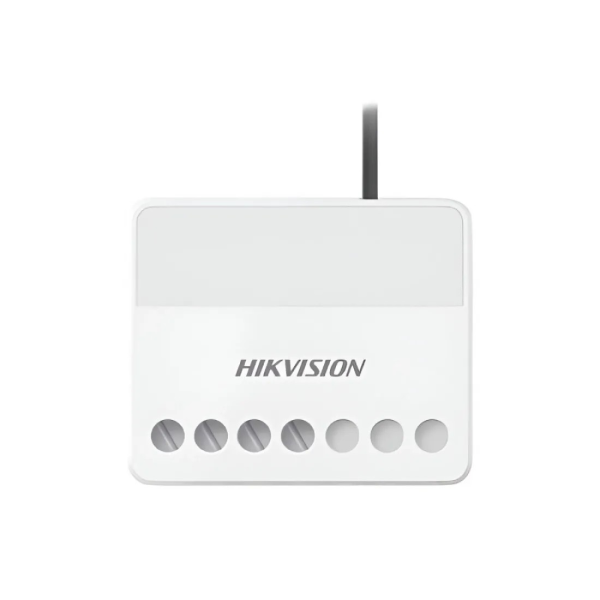

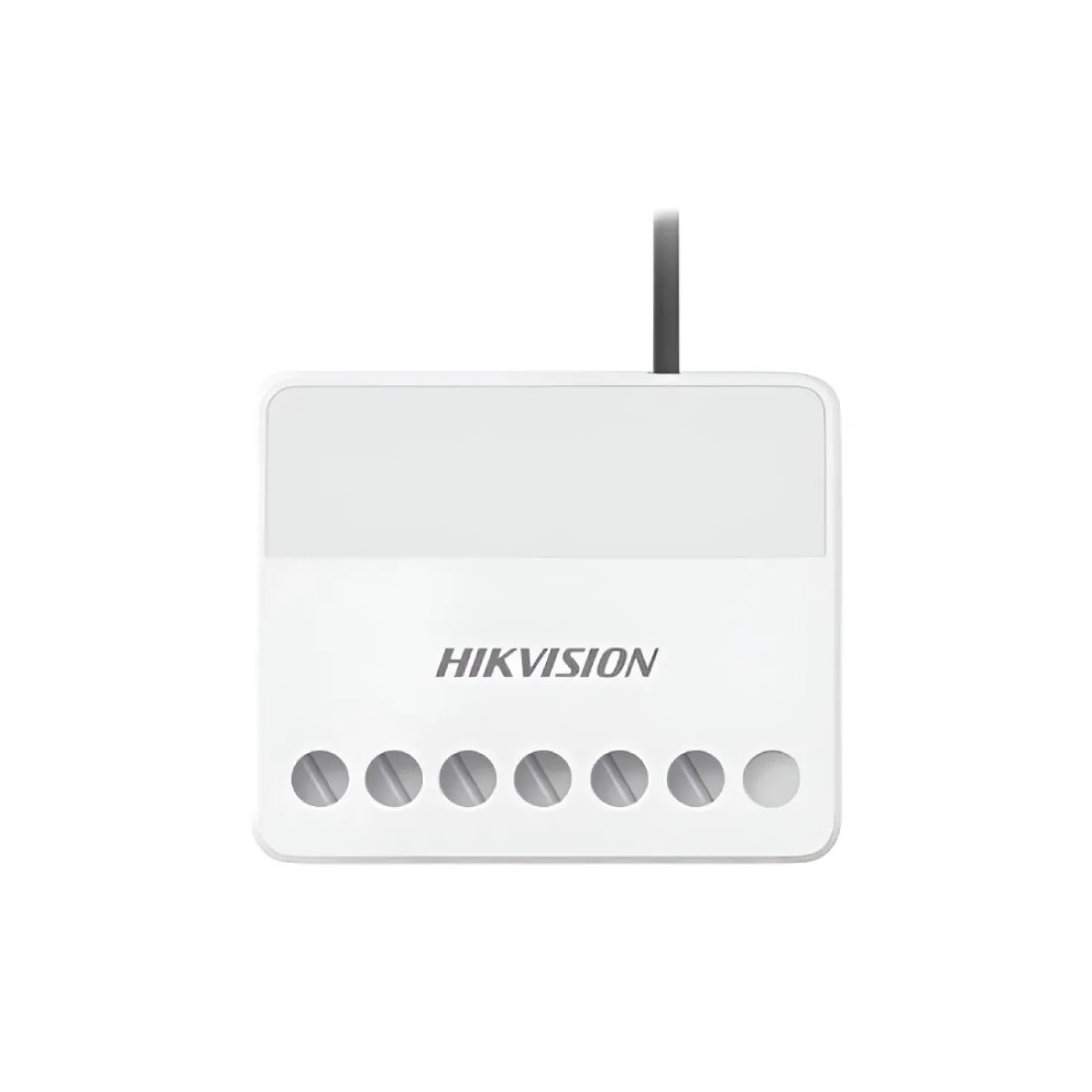

Hikvision DS-PM1-O1L-WB Relay Module (Wall Switch)

Original price was: ₹4,175.00.Current price is: ₹2,132.00.

Terms & Conditions

For Cash on delivery order, you have to pay 10% advance via payment gateway. (कॅश ऑन डिलीवरी आर्डर के लिए 10% पहले आपको ऑनलाइन भुगतान करना पड़ेगा)
Refund or return only process if product is damaged or wrong product delivered. (रिफंड या रिटर्न उसी शर्त पर होगा जब प्रोडक्ट डैमेज या गलत डिलीवर हुआ हो)
You must take video while unboxing for refund/return validation (रिफंड या रिटर्न अप्लाई करने के लिए आपके पासअनबॉक्सिंग का वीडियो होना चाहिए)

Category	Feature	Specification
Software Features	Scenario Setting	By alarm, by operation, by fault, by schedule, by manual
Software Features	Learning Button	1, for register
Hardware Features	Serial Port	1, for debug
Electrical Characteristics	Power Supply	DC 7V to 24V
	Operation Humidity	10% to 90%
	Operation Temperature	-10°C to 55°C
Wireless Transmission	RF Frequency	433 MHz
	RF Method	Two-way communication
	RF Modulation	2GFSK
	RF Distance	800 m
	Wireless Security	AES-128
Display	LEDs Status	3, register/signal (green/red), power (green), relay status (blue)
Display	Alarm Input	1 for tamper, NO/NC
General	Installation Method	Wall-Mounting
	Dimension (WxHxD)	38 mm × 25 mm × 18 mm
	Shell Material	Plastic
	Color	White
Weight	28.5 g
Device Management	Relay Output	1, NO/NC (0 to 36V DC, Max 5A)
